Stella seriesparts Series

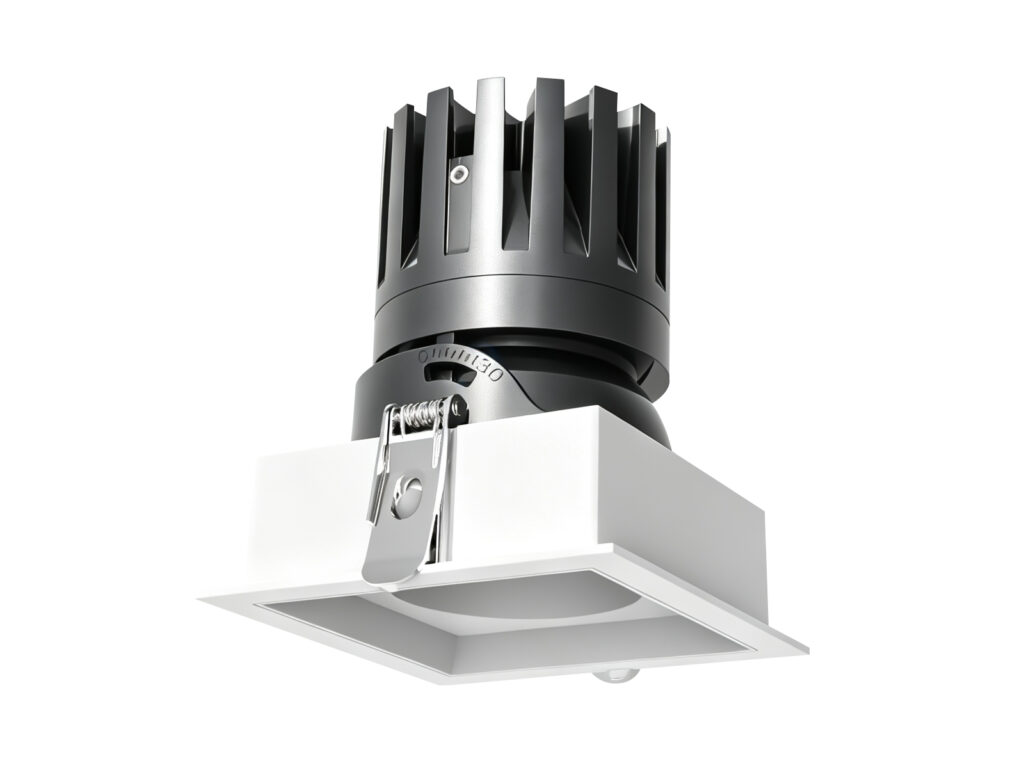

Stella 12W Recessed LED Spotlight 75mm Cutout, GU10 Module, Φ58mm Housing, Anti-Glare Ceiling Spotlight, 0-30° Tilt Adjustable, Push-fit Rotating Ring with Ball plunger for Heatsink, Square Trim

SKU LS-B9517-12-BP

Recessed Anti‑Glare LED Spotlight, High CRI, Efficient Heat Dissipation

Power
12 W
Luminous Flux
1200 Lm
CCT
2700K;3000 K;4000 K;6000 K
CRI
90;97
Beam Angle
3 deg;4 deg;7 deg;15 deg;24 deg;36 deg;50 deg
IP Rating
IP20
Installation
Recessed

Configure Your Product

Base Model
Selected ConfigurationPlease select a base model

Models

Variants

ModelPowerFluxSizeCCTCRIBeamHousingDriverDimming
ST075 GU10 +PC Module-Square Trim12 W1200 lmDia. 85 x H 100.5 mm3000 K;4000 K;6000 K90;973 deg;4 deg;7 deg;15 deg;24 deg;36 deg;50 degBlack;WhiteEaglerise;Lifud;Philips

Technical Data

Technical Specifications

Input Voltage220-240 V AC
Power12 W
Luminous Flux1200 Lm
Efficacy100 Lm/W
CCT2700K;3000 K;4000 K;6000 K
CRI90;97
SDCM3
Beam Angle3 deg;4 deg;7 deg;15 deg;24 deg;36 deg;50 deg
UGR<19
IP RatingIP20
Power Factor0.6
Driver BrandEaglerise;Lifud;Philips
Lifetime50000 h
MaterialDie-cast aluminum
FinishWhite;Black
InstallationRecessed
Operating Temperature-20 to 40 C

Project Options

OEM Options

Custom wattageCCTCRIBeam angleFinishDriverLogoPackaging
