Stella seriesparts Series

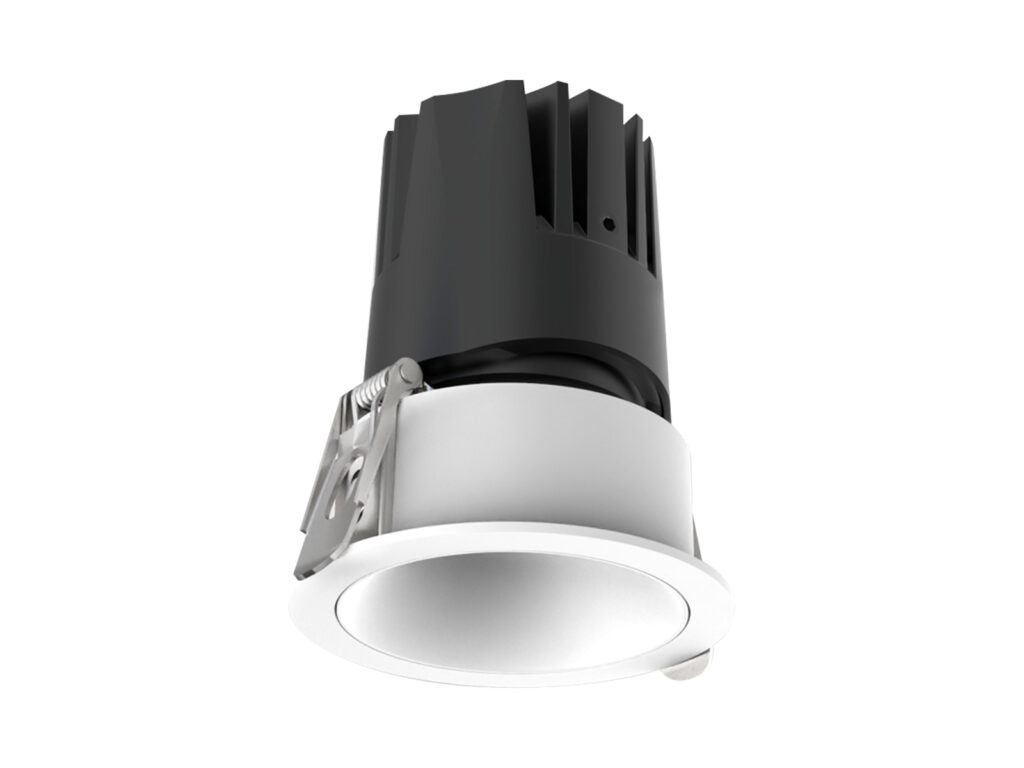

Stella 9W Recessed LED Spot Light – 55mm Cutout, 0-20° Adjustable Tilt, Round Trim, Optional Beam Angle 4°/6°/8°

SKU LS-ST055-9W-ZY

Recessed Anti‑Glare LED Spotlight, High CRI, Efficient Heat Dissipation

Power
9 W
Luminous Flux
900 lm
CCT
3000 K;4000 K;6000 K
CRI
90;97
Beam Angle
4 deg;6 deg;8 deg;
IP Rating
IP20
Dimming
DALI
Installation
Recessed

Configure Your Product

Base Model
Selected ConfigurationPlease select a base model

Models

Variants

ModelPowerFluxSizeCCTCRIBeamHousingDriverDimming
ST055 LED Module-Round Trim9 W900 lmDia. 62 x H 77.9 mm3000 K;4000 K;6000 K90;9715 deg;24 deg;36 deg;50 degBlack;WhiteEaglerise;Lifud;Philips

Technical Data

Technical Specifications

Input Voltage220-240 V AC
Power9 W
Luminous Flux900 lm
Efficacy100 Lm/W
CCT3000 K;4000 K;6000 K
CRI90;97
SDCM3
Beam Angle4 deg;6 deg;8 deg;
UGR<19
IP RatingIP20
Power Factor0.6
Driver BrandEaglerise;Lifud;Philips
DimmingDALI
Lifetime50000 h
MaterialDie-cast aluminum
FinishWhite;Black
InstallationRecessed
Operating Temperature-20 to 40 C

Technical Files

Downloads

CADDownload ↓

Project Options

OEM Options

Custom wattageCCTCRIBeam angleFinishDriverLogoPackaging
