Dot Trimless Series

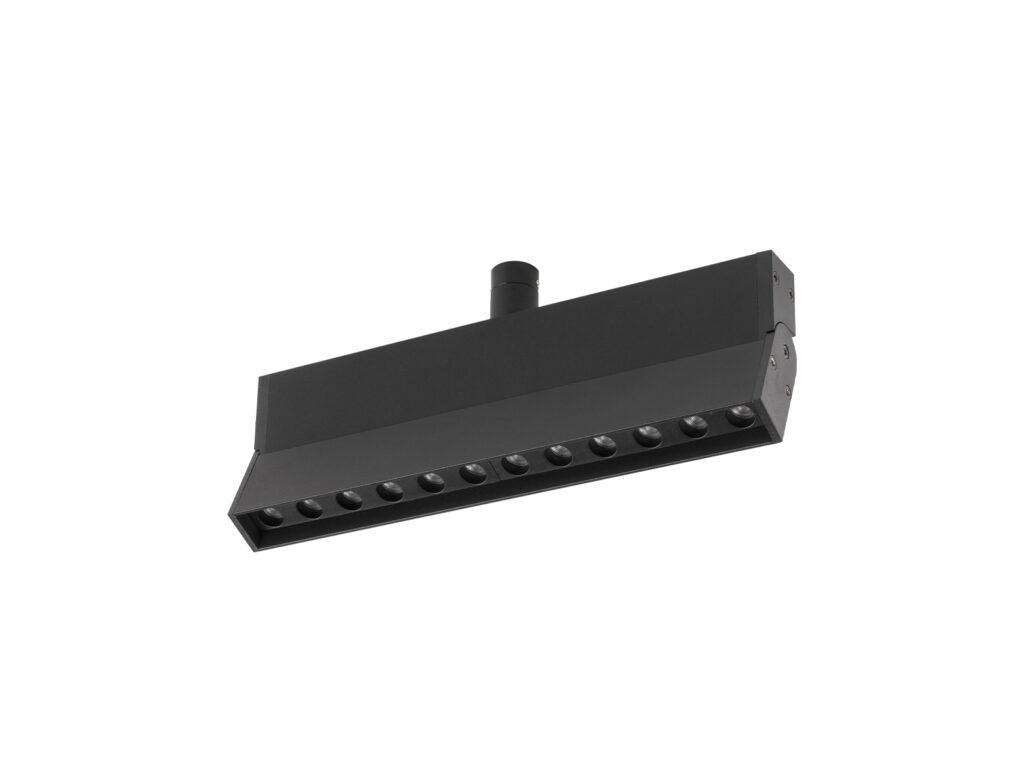

Dot Trimless 48V 9W Magnetic Recessed Foldable Grating Lamp, 12-Head Linear Embedded Led Ceiling Grille Light

SKU D2818-9A

Magnetic Recessed Lighting / Minimalist Ceiling Lighting / Architectural Lighting

Power
9 W
Luminous Flux
900 Lm
CCT
3000 K;4000 K
CRI
90;97
Beam Angle
24 deg 36 deg
IP Rating
IP20
Installation
Embedded

Configure Your Product

Base Model
Selected ConfigurationPlease select a base model

Models

Variants

ModelPowerFluxSizeCCTCRIBeamHousingDriverDimming
Dot Trimless9 W900 lmL235 x W23 x H79mm3000 K;4000 K;6000 K90;973 deg;4 deg;7 deg;15 deg;24 deg;36 deg;50 degBlack;WhiteEaglerise;Lifud;Philips

Technical Data

Technical Specifications

Input Voltage48 V AC
Power9 W
Luminous Flux900 Lm
Efficacy100 Lm/W
CCT3000 K;4000 K
CRI90;97
SDCM3
Beam Angle24 deg 36 deg
UGR<19
IP RatingIP20
Power Factor0.6
Lifetime50000 h
MaterialAluminum
FinishBlack
InstallationEmbedded
Operating Temperature-20 to 40 C

Project Options

OEM Options

Custom wattageCCTCRIBeam angleFinishDriverLogoPackaging
